GT FOOT OPTION

GT FOOT OPTION

Explanation
Features
Gallery
Detail

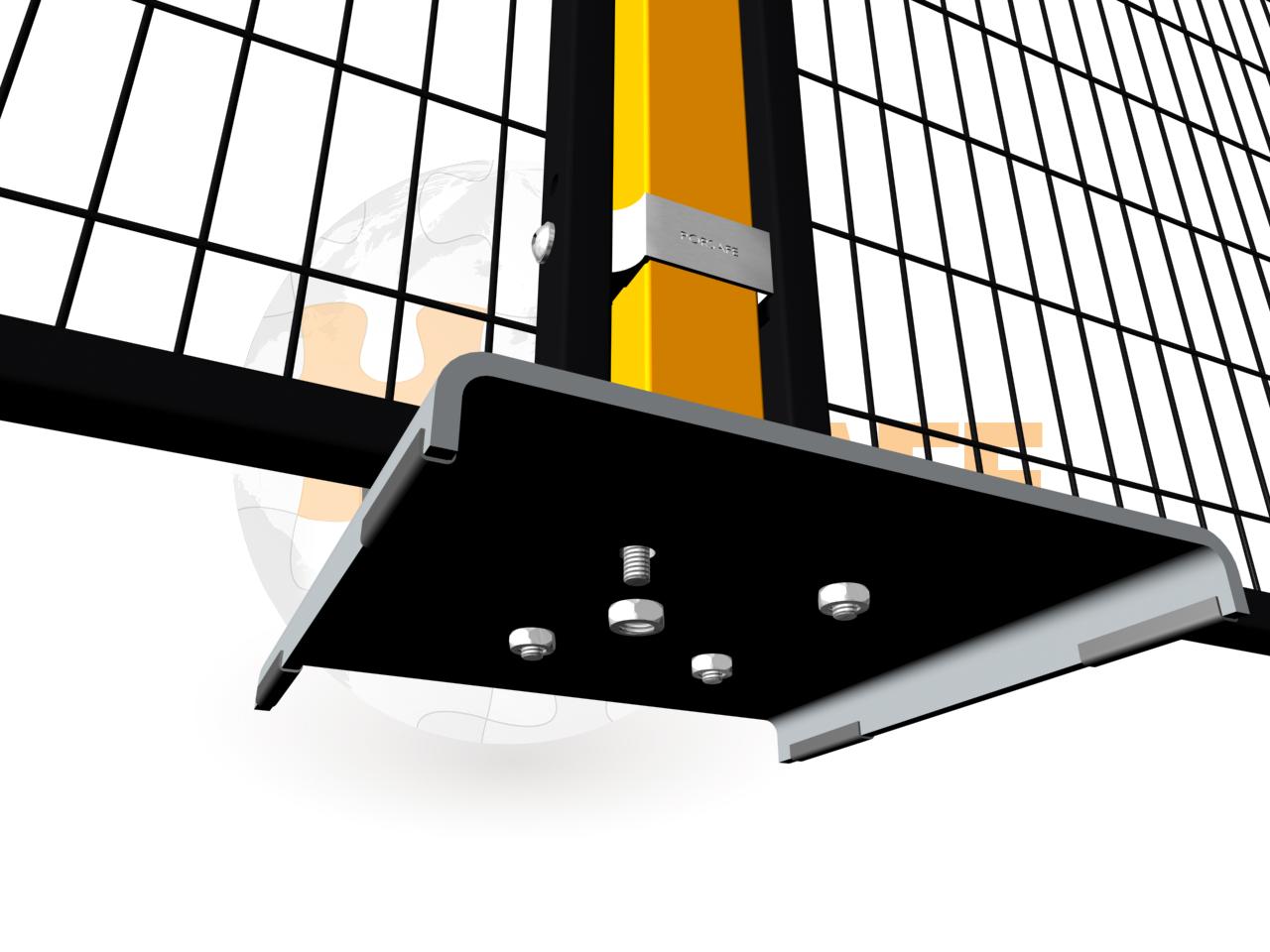

This model provides stability through its weight, with the uprights bolted to the legs, and offers significant convenience when moving, transporting and storing the unit.

The safety panels are fitted using clamps or similar brackets.

STANDARD VALUES
System Height	:	1200 / 2200 mm
Panel Height	:	1020 / 2020 mm
Panel Width	:	1000 /1200 / 1500 mm
GT Foot Sizes	:	500 mm
GT Foot Width	:	ø 80 mm Bolted Rotating Type
Panel Frame Meterial	:	30202 mm Box Profile
Panel Wire	:	ø 3 mm / 25*100 mm
Panel Color	:	Ral 9005 (Black)
Post Material	:	Box Profile 50501,5 mm
Post Installation Types	:	Positioning on the floor
Post Color	:	Ral 1028 (Yellow) / Ral 7040 ( Grey)
Panel Installation Types	:	Clamp+Screw
