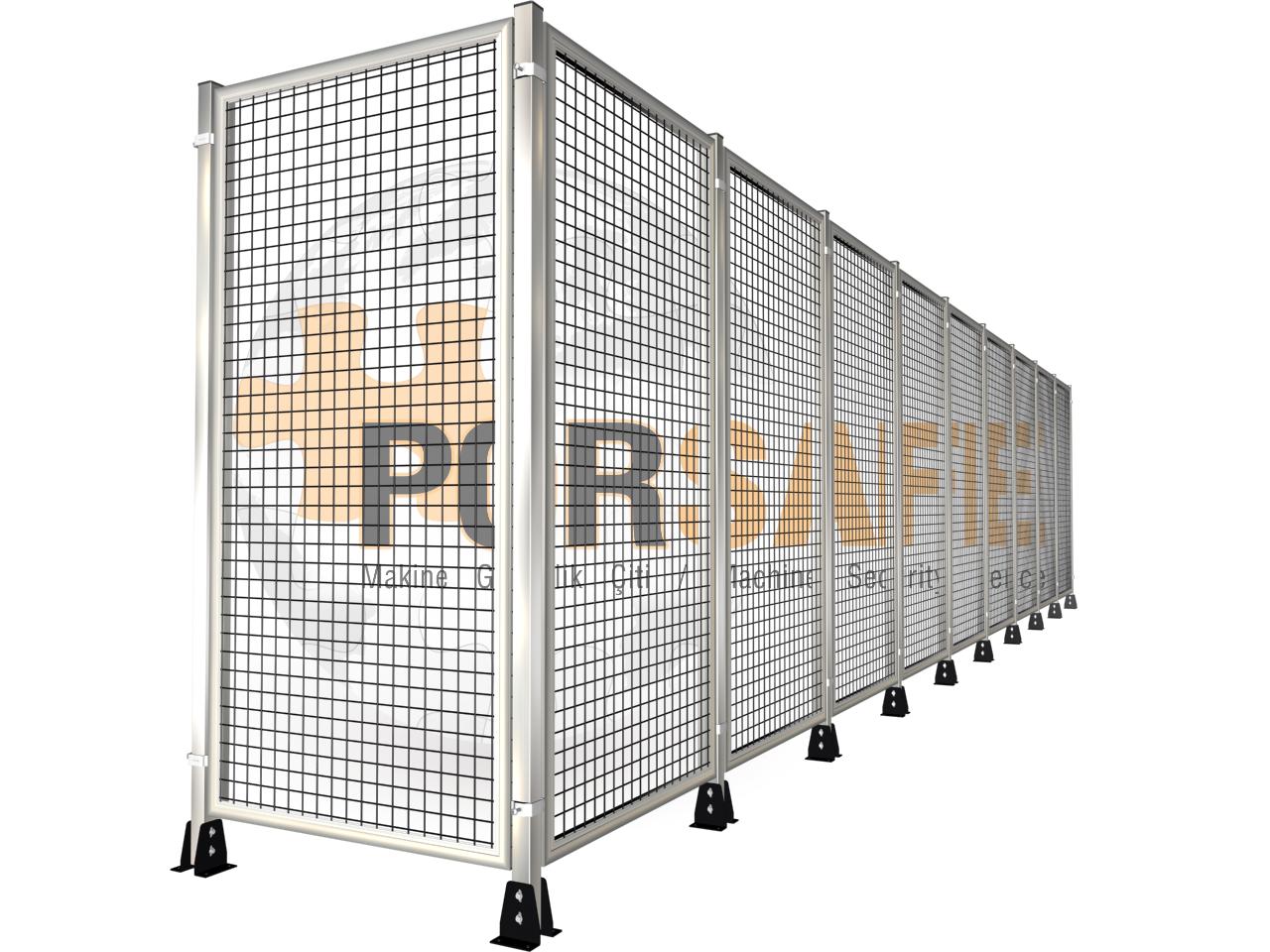

STANDARD BOX PROFILE SYSTEMS
These are machine guards constructed using aluminum box profiles instead of steel.
In this system, steel wires are installed within the panels along with aluminum slats. Paint options are available for the fence wire, while the remaining aluminum components are left in their natural color for the final production.

The panel-to-pole connection is achieved with aluminum BLB clamps and LBPS brackets.
System Height : 1200 / 2200 mm
Board Height : 1020 / 2020 mm
Board Width : 1000 /1200 / 1500 mm
Board Frame Meterial : 30*50*1,5 mm Box  Profile
Board Safety Wire : ø 3,5 mm/ 50*50 mm Steel
Standard Panel Color : Board: Natural Aluminium Color/ Fens: Ral 9005 (Black)
Board Installation Types : BLB-LBPS System
Post Material : 50*50*1,5 mm Box Profile
Post Installation Types : Steel Dowels
Standard Post Color : Natural Aluminium

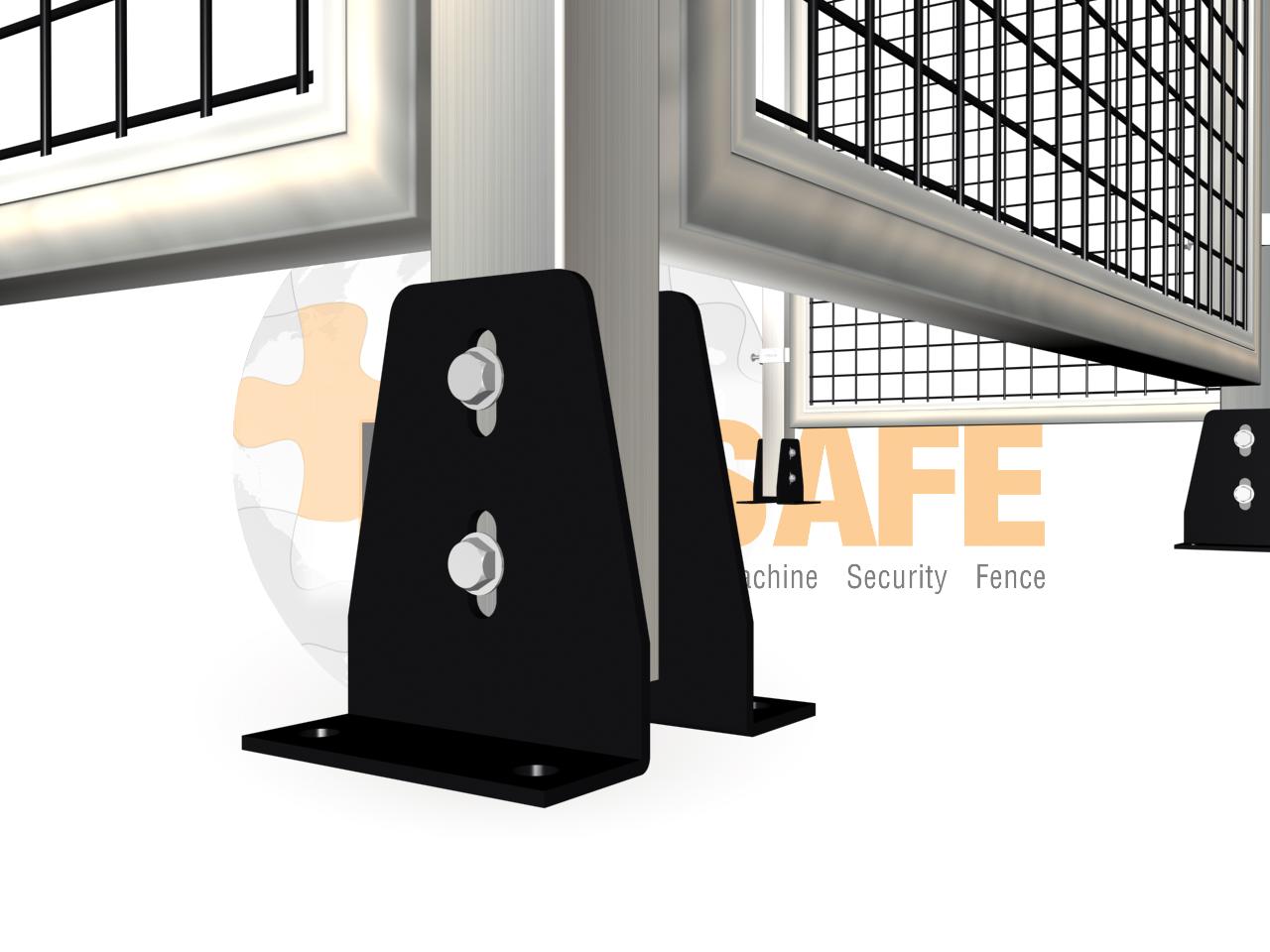

  • Detail 2.1

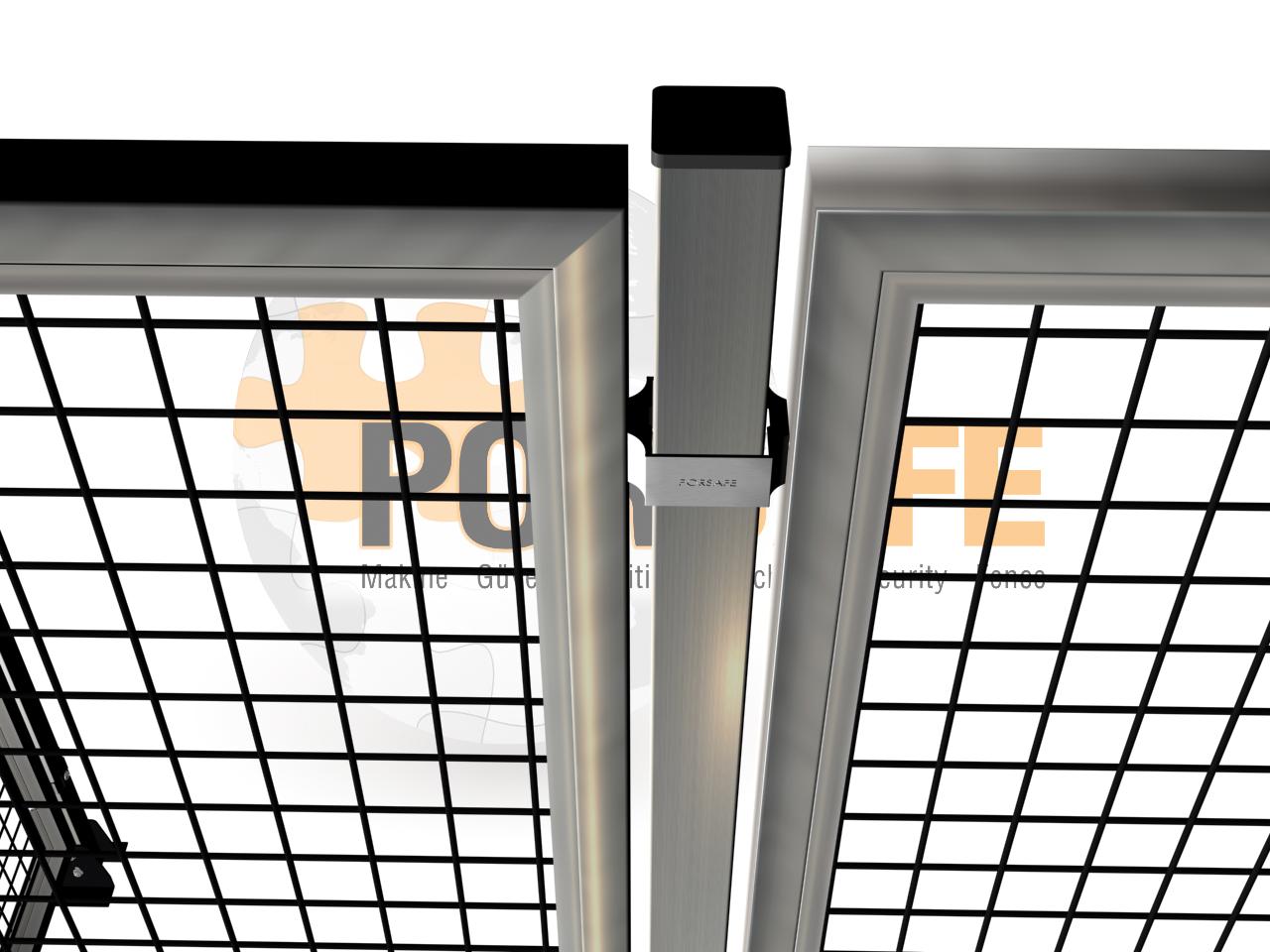

  • Detail 3.1

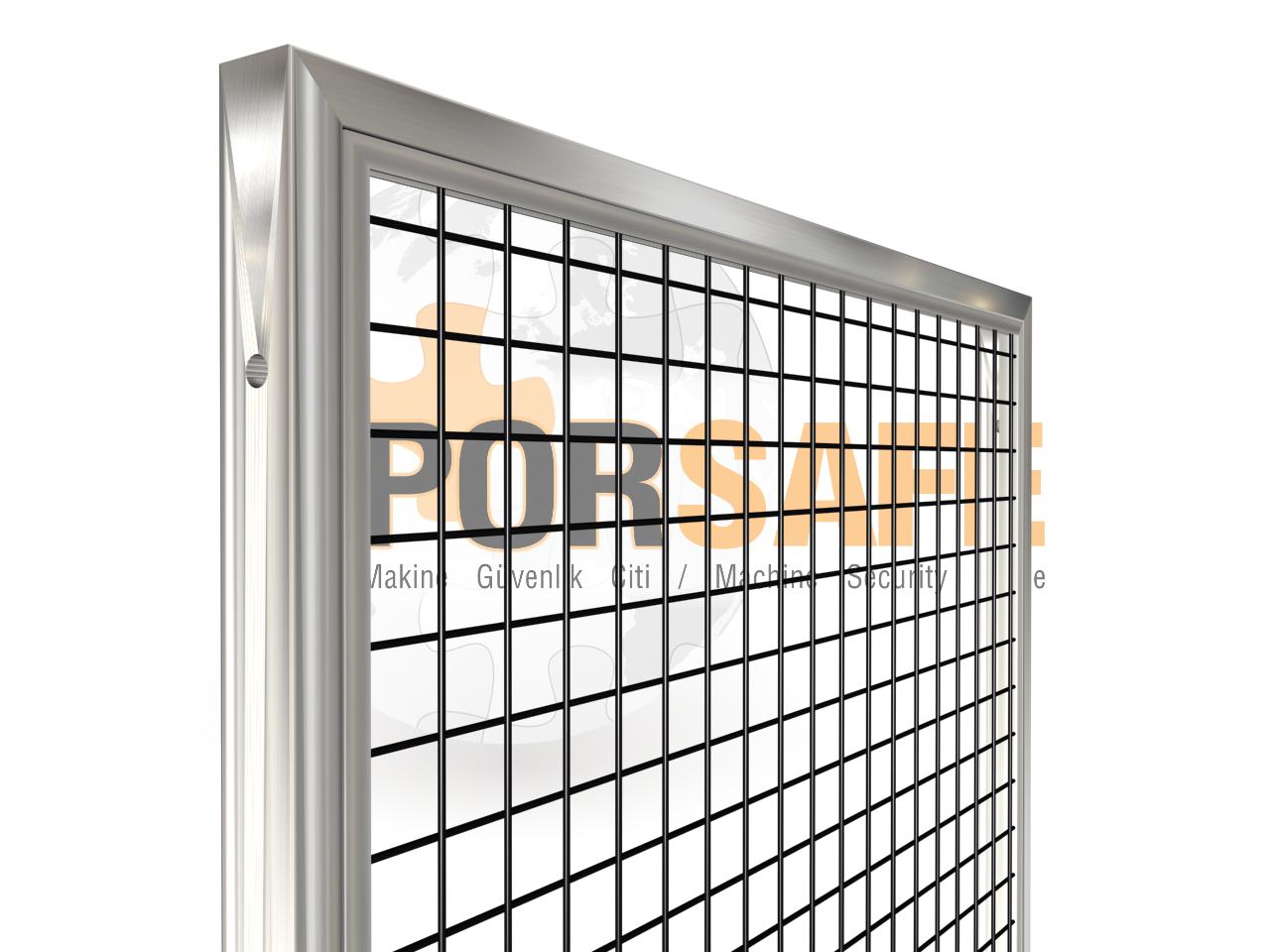

  • Detail 4.1

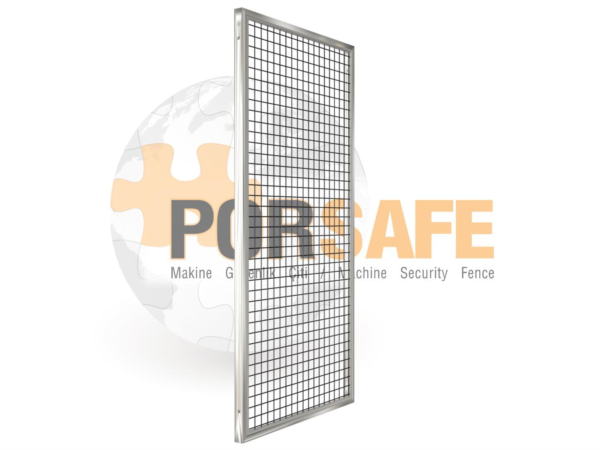

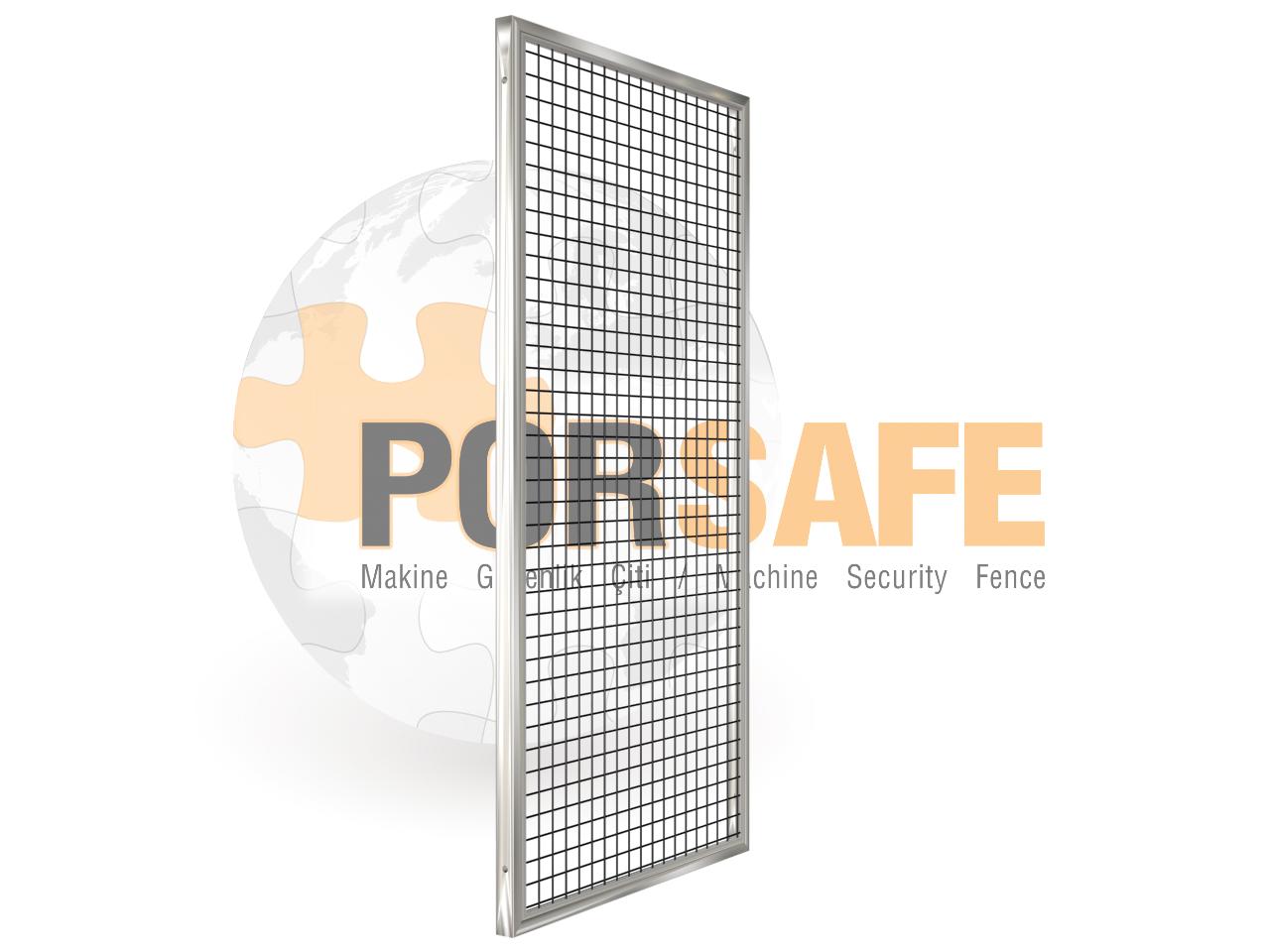

  • Detail 4.2

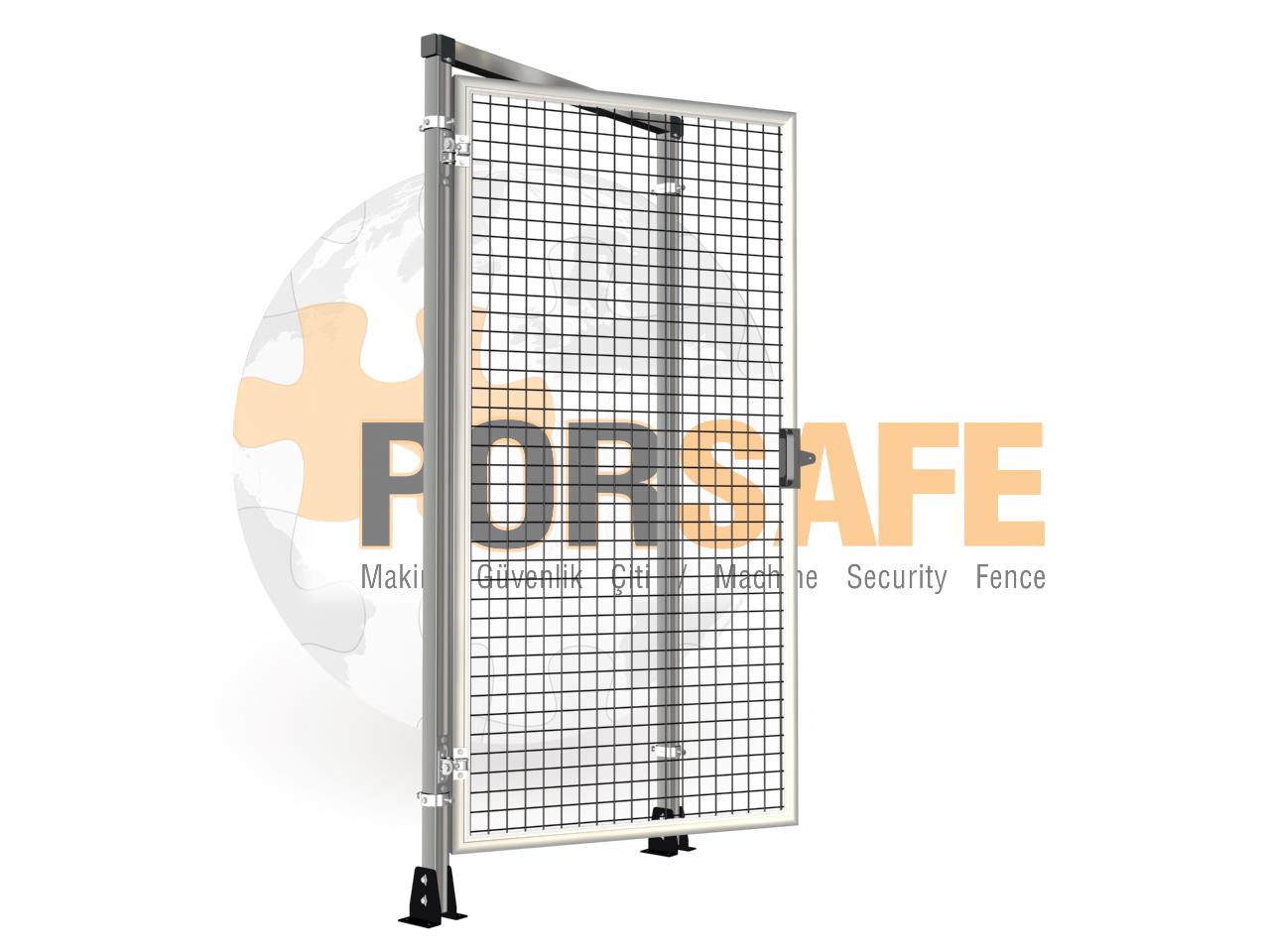

  • Detail 8.1

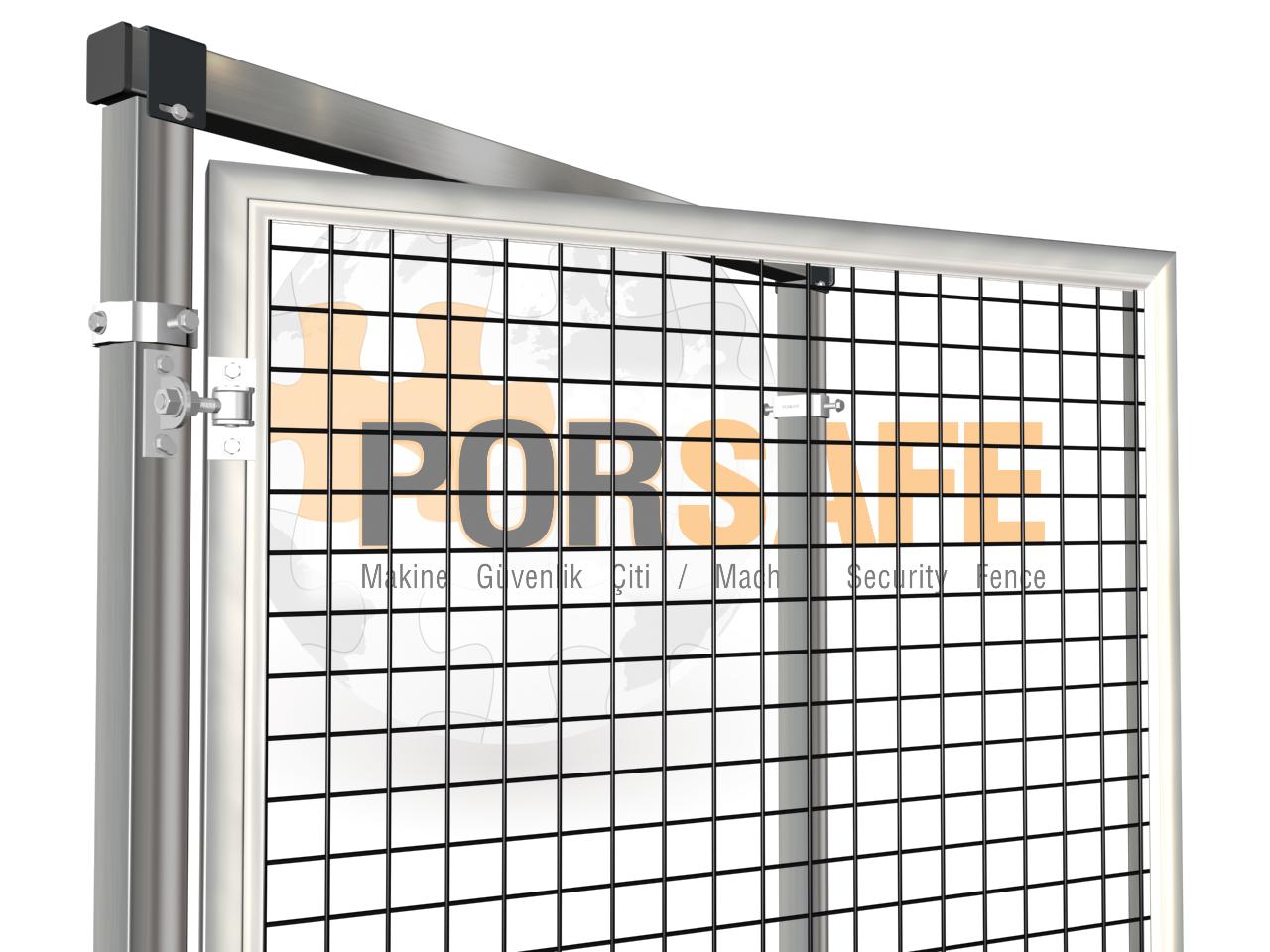

  • Detail 8.2

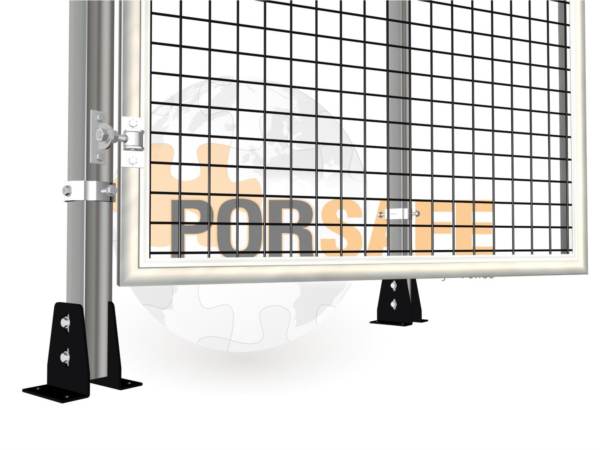

  • Detail 8.3

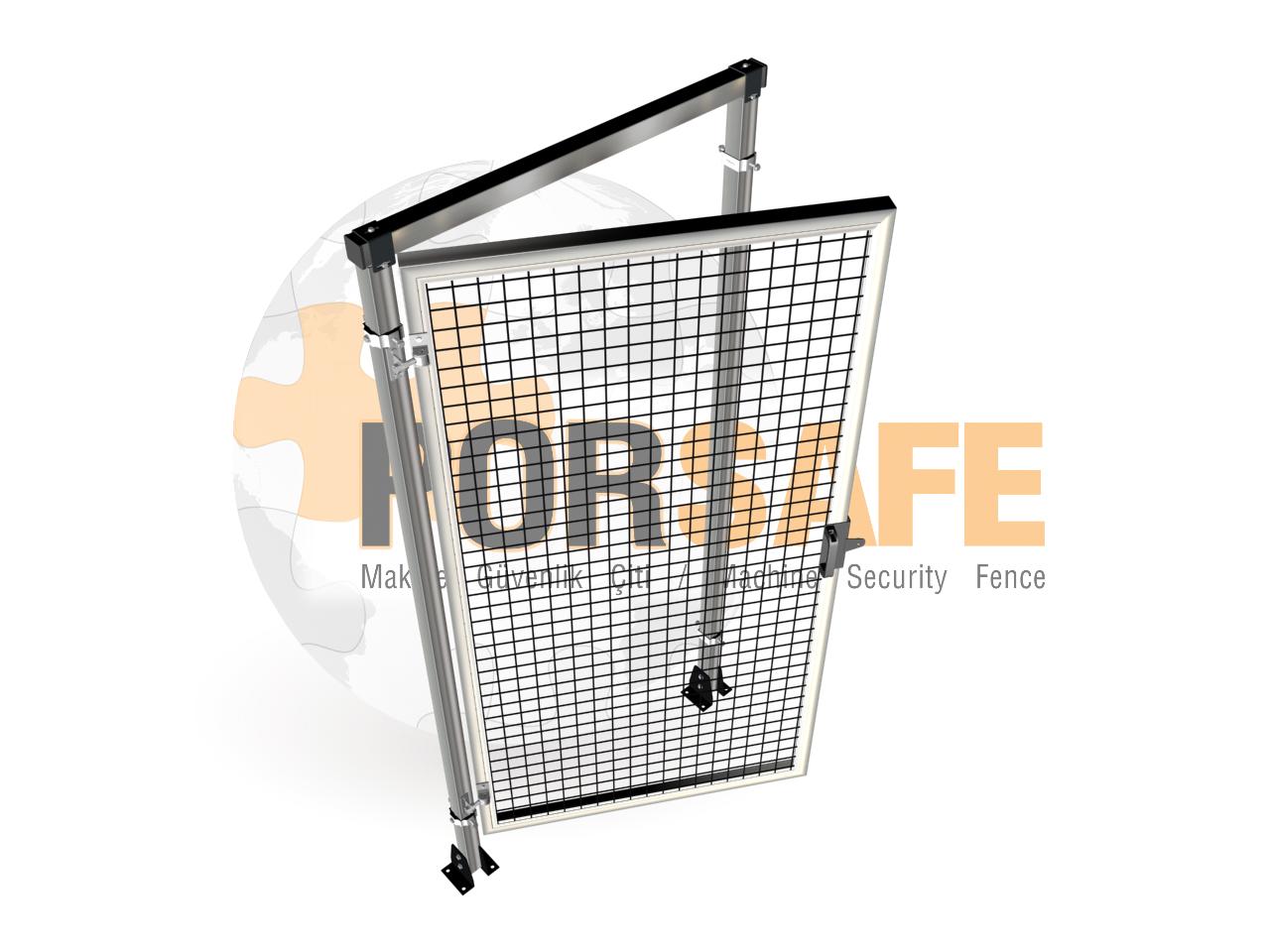

  • Detail 8.4
