BLB-N TYPE

BLB-N systems consist of framed mesh panels installed between posts which are fixed on the ground by adjustable pieces. The posts and panels are polyester powder coated.

Panels are produced in standard widths and colors, as indicated. Different widths and required colors are available as specified by the application.

Standard system heights are in compliance with European standards for safety.

Deliveries can be made FOT or turn-key base as required.

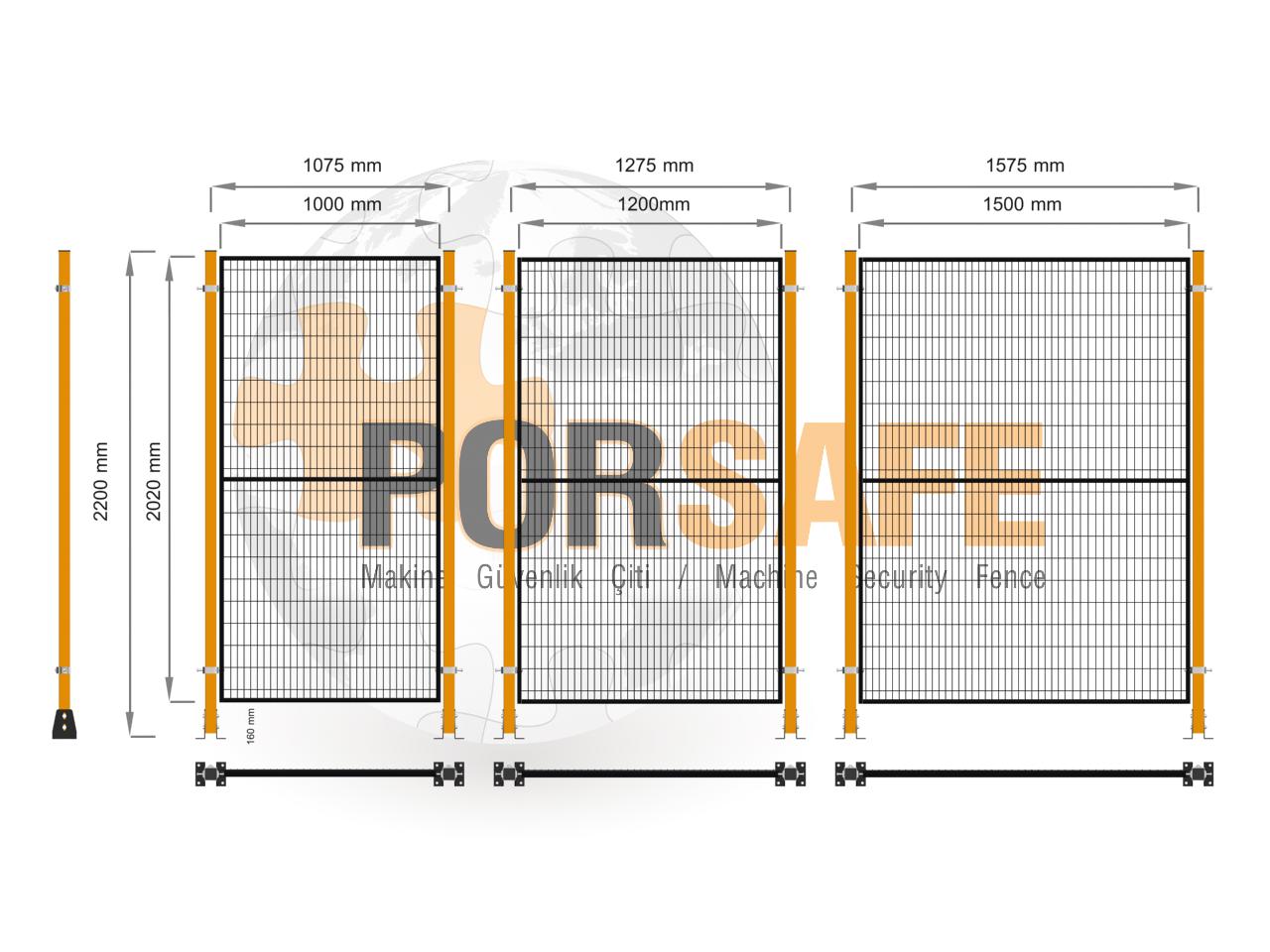

System Height : 1200 / 2200 mm
Panel Height : 1020 / 2020 mm
Panel Width : 1000 / 1200 / 1500 mm
Panel Frame Material : 30*20*1,5 mm Box Profile
Panel Wire : ø 3 mm / 20*100 mm
Standard Panel Color : Ral 9005 (Black)
Post Material : Box Profile (50*50/60*60 mm)
Post Installation : Base Plate + Steel Dowels
Standard Post Color : Ral 1028 (Yellow) / Ral 7040 (Grey)
Panel Installation Type : Clamp + Screw



  • Detail 1.1
  • Detail 1.2
  • Detail 1.3
  • Detail 2.1
