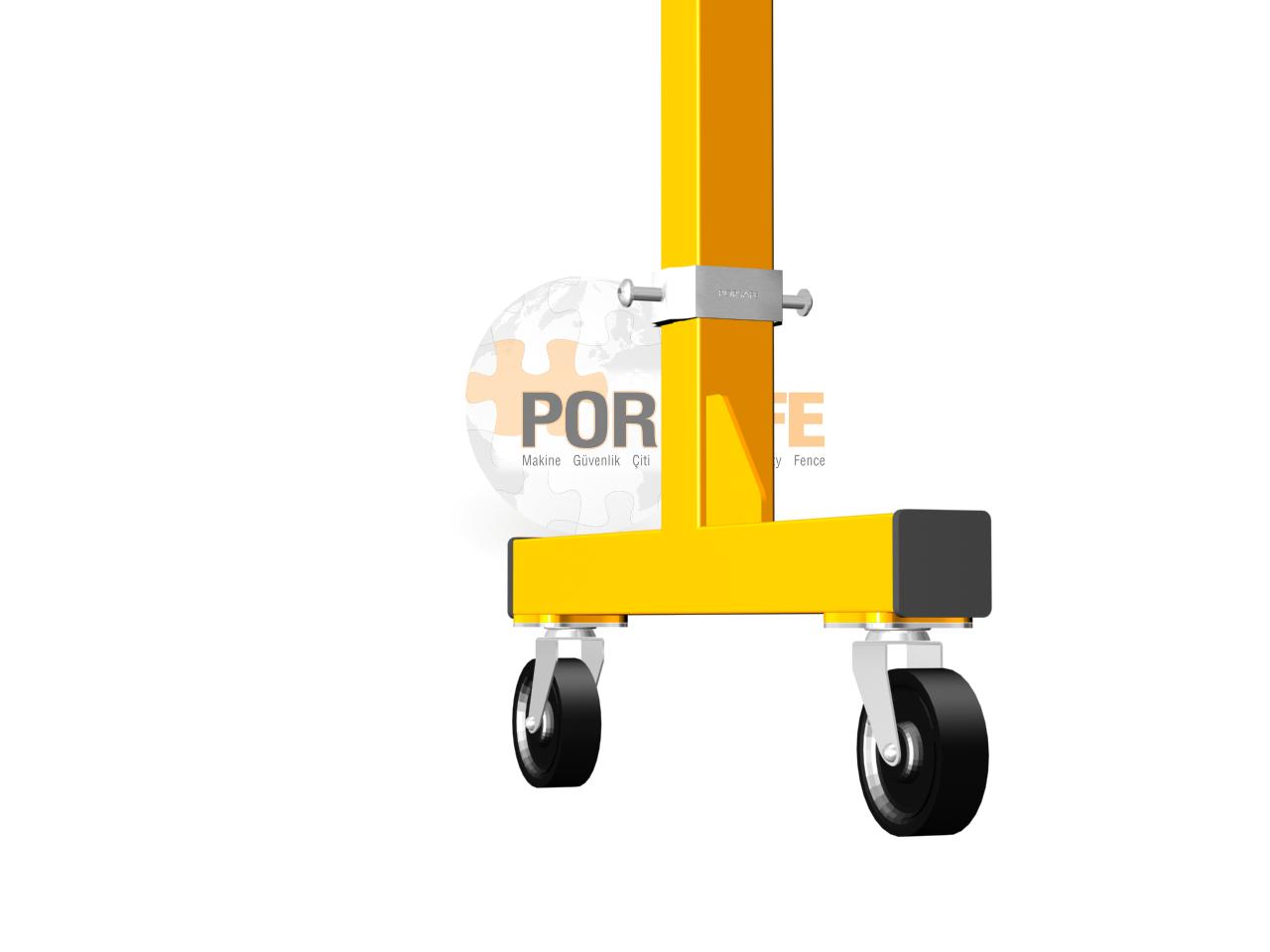

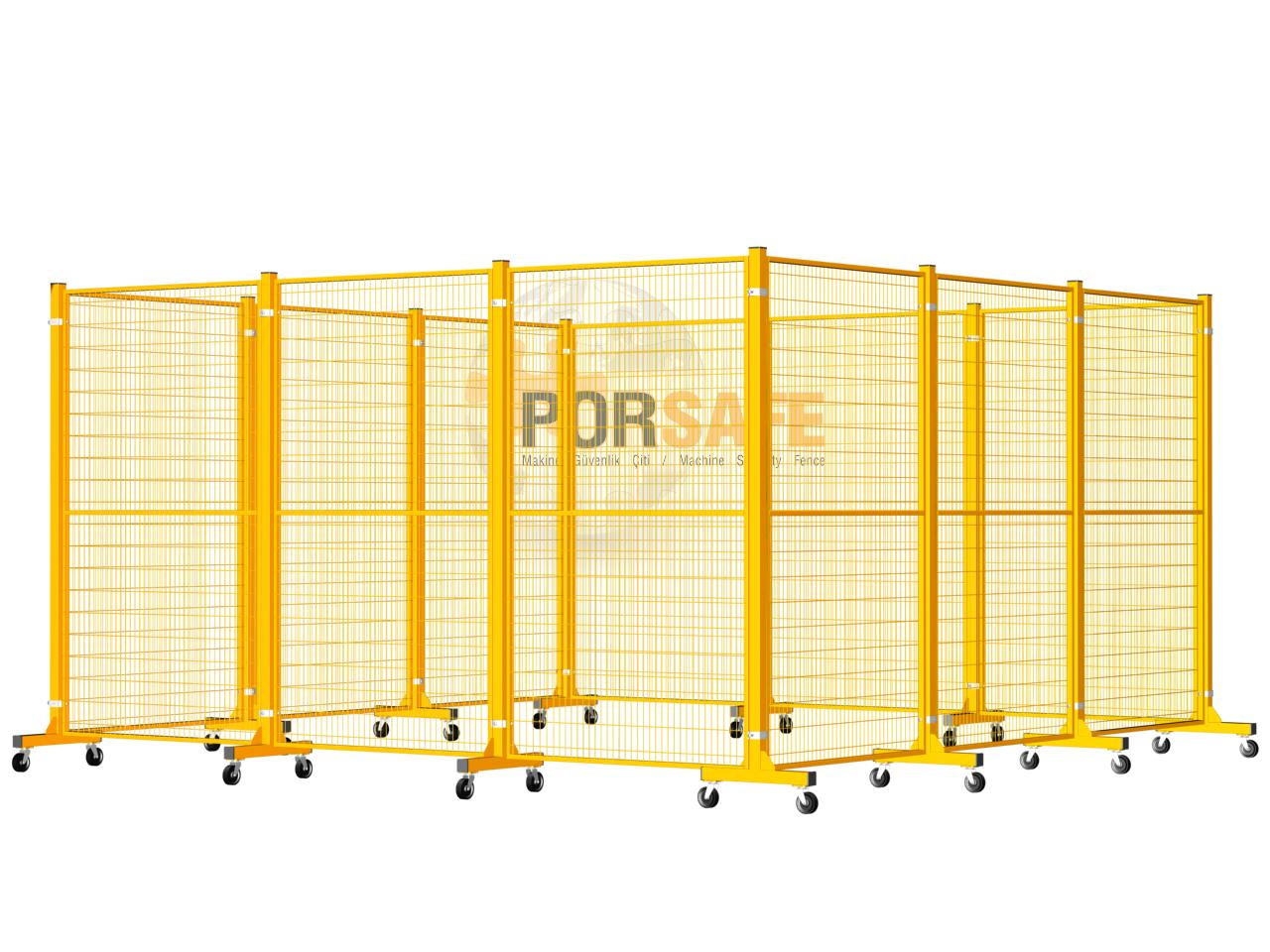

This model features equipment that makes relocation and transport significantly easier.

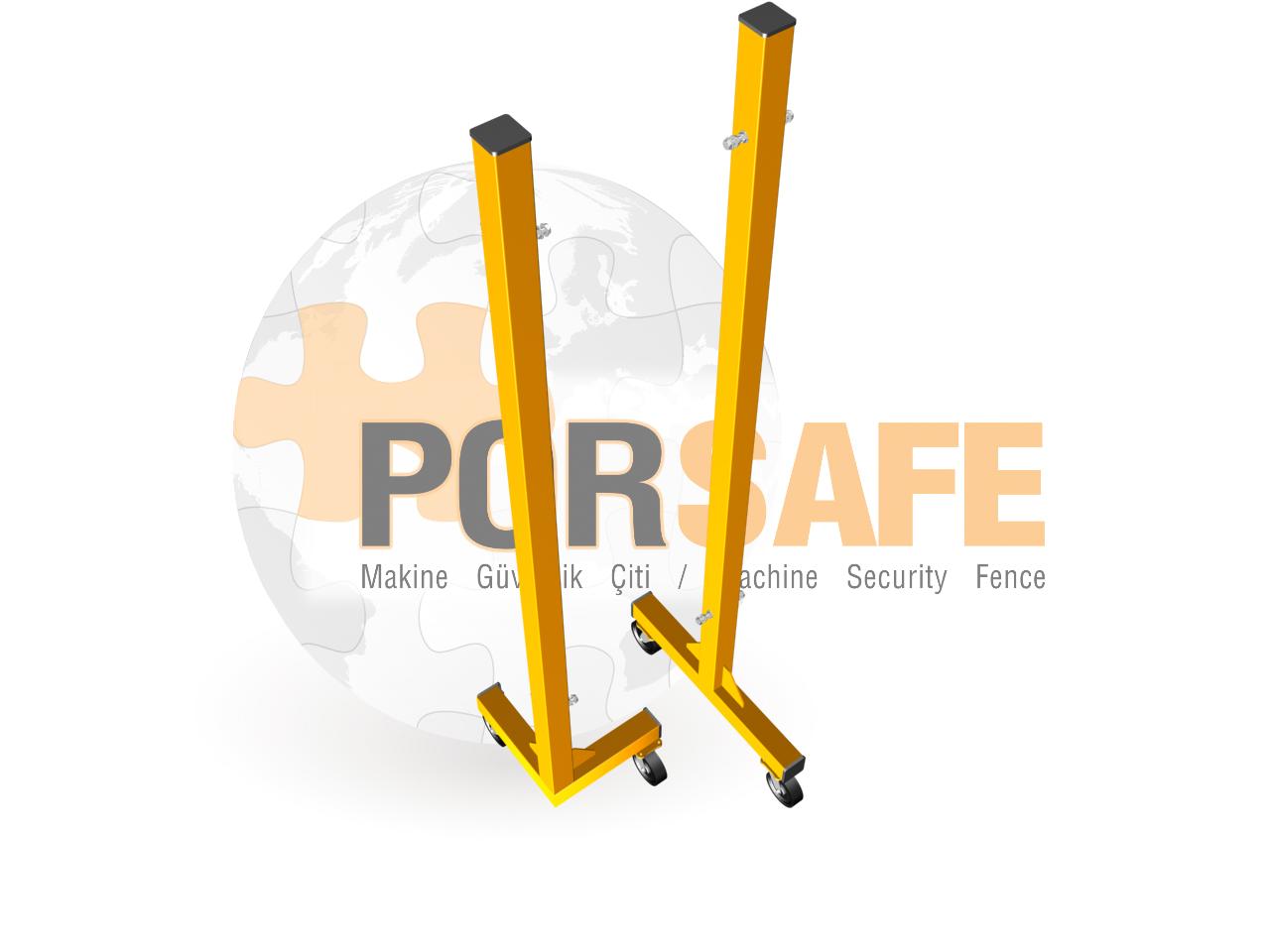

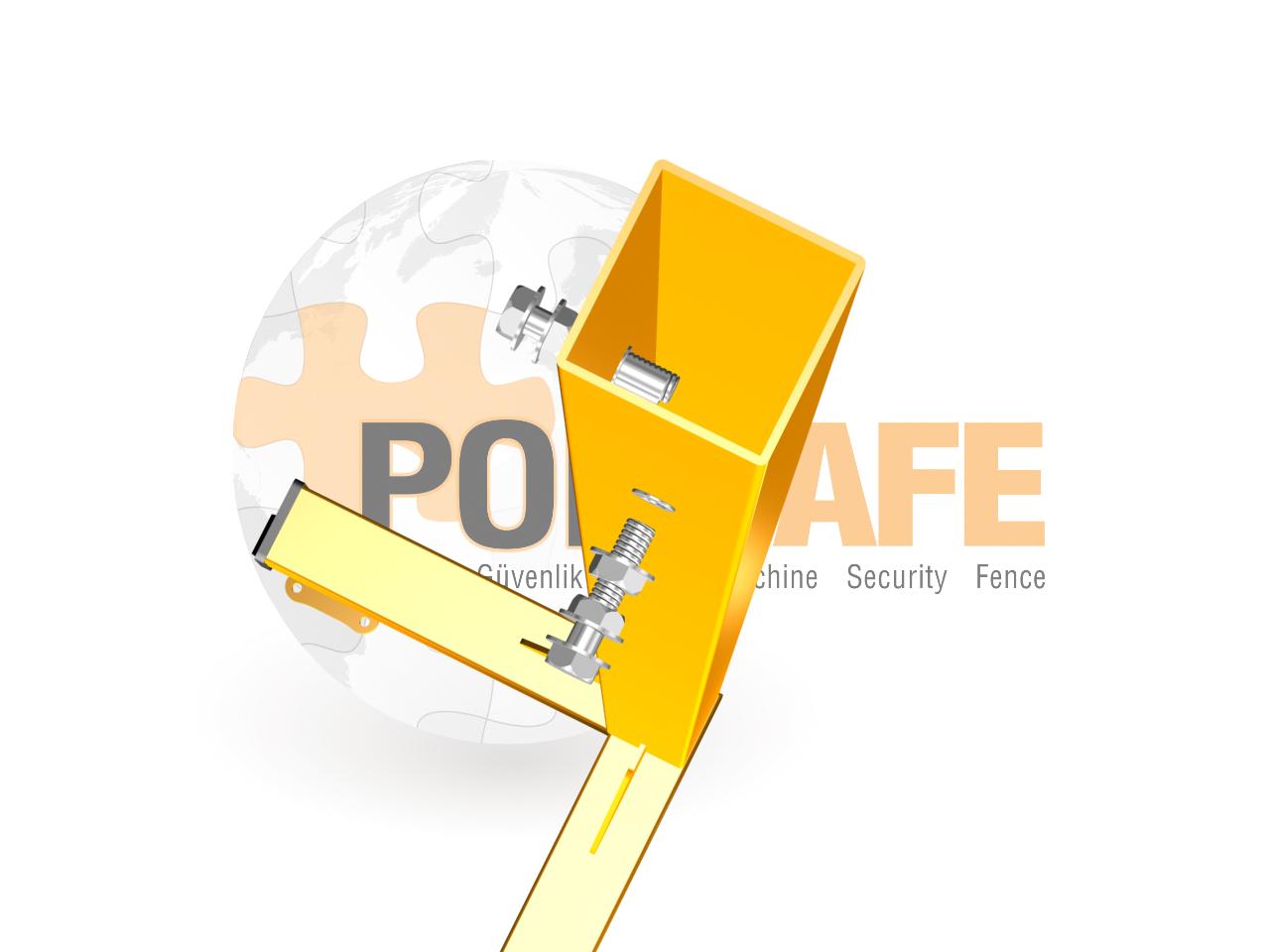

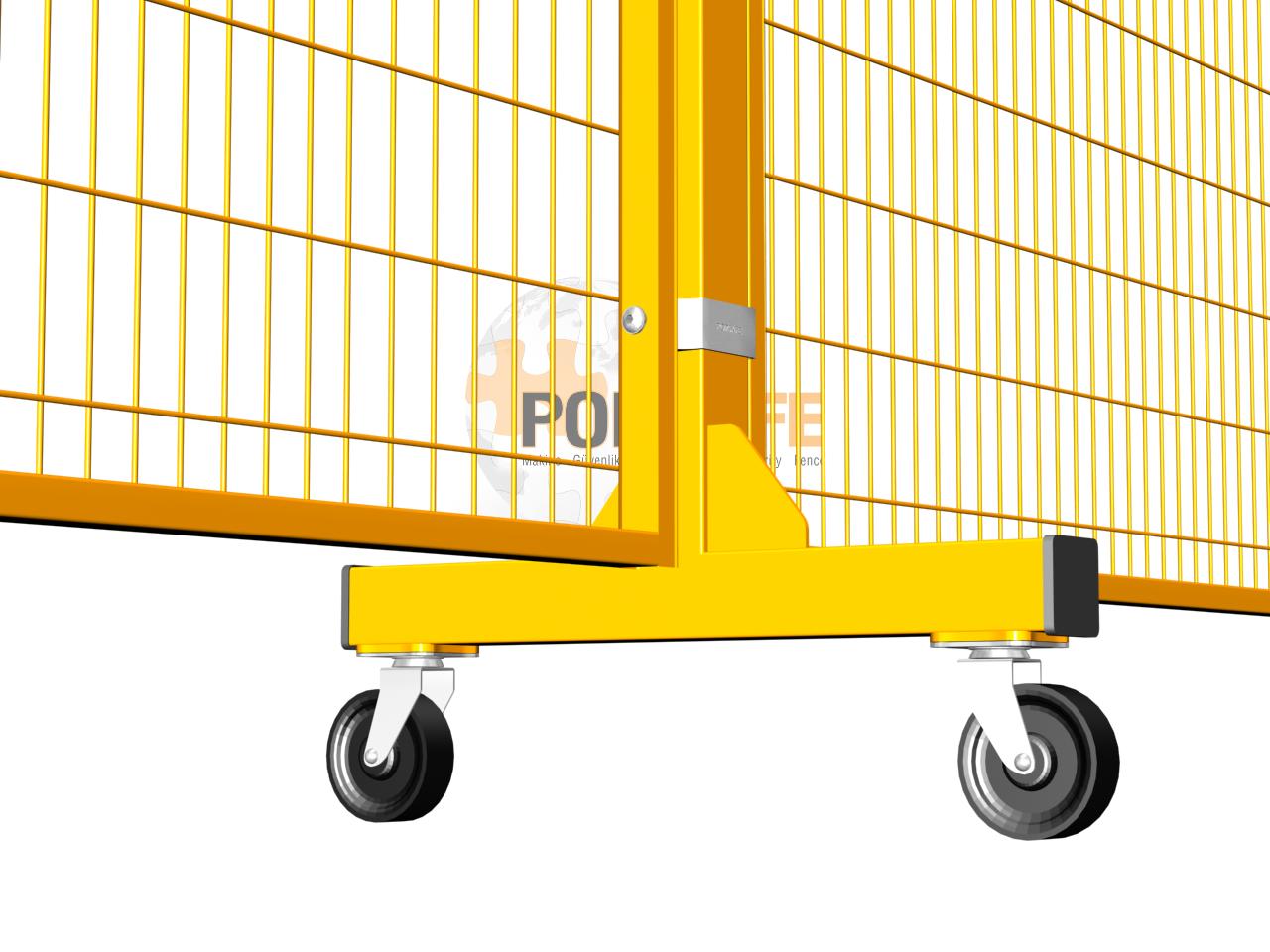

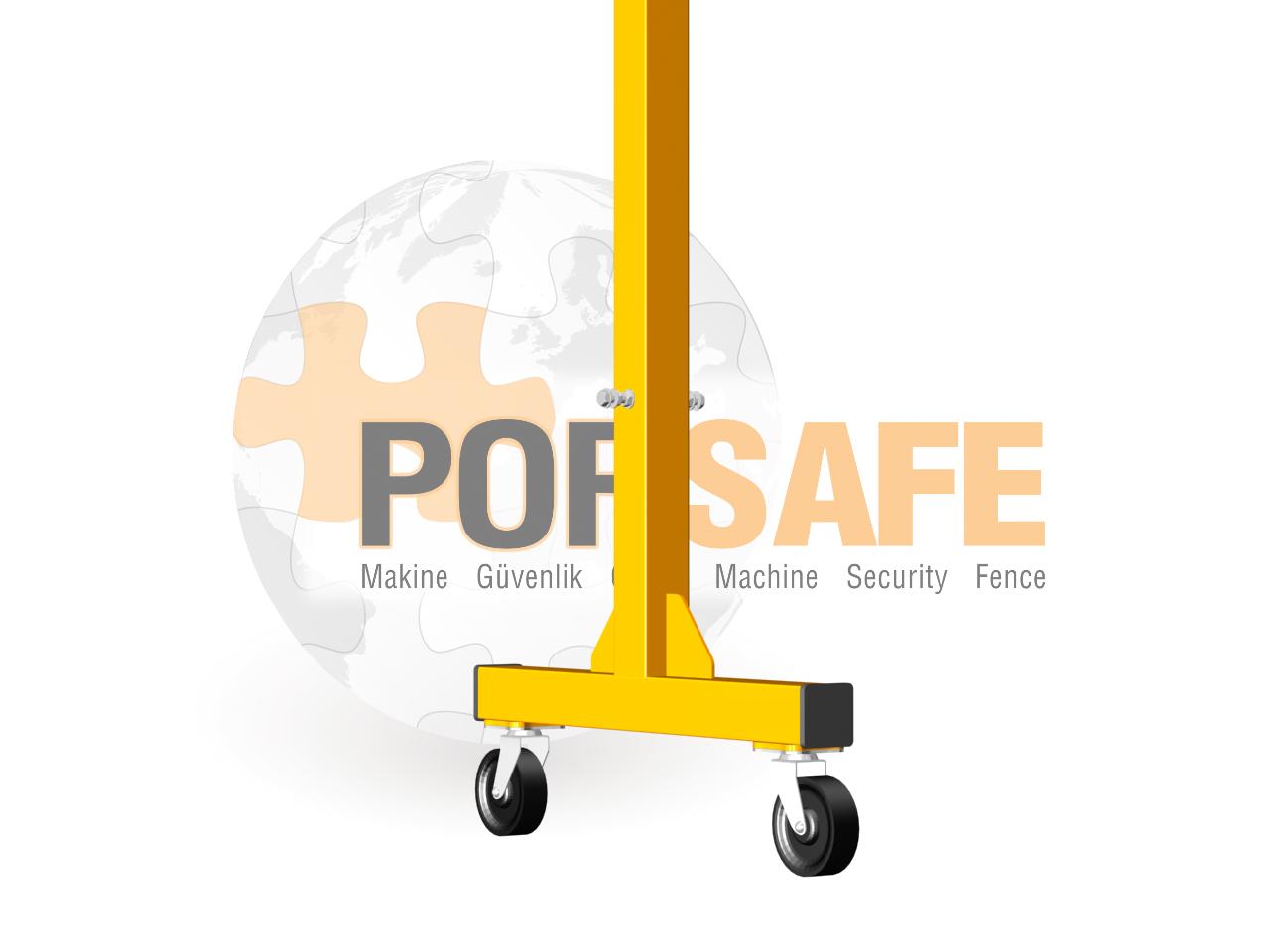

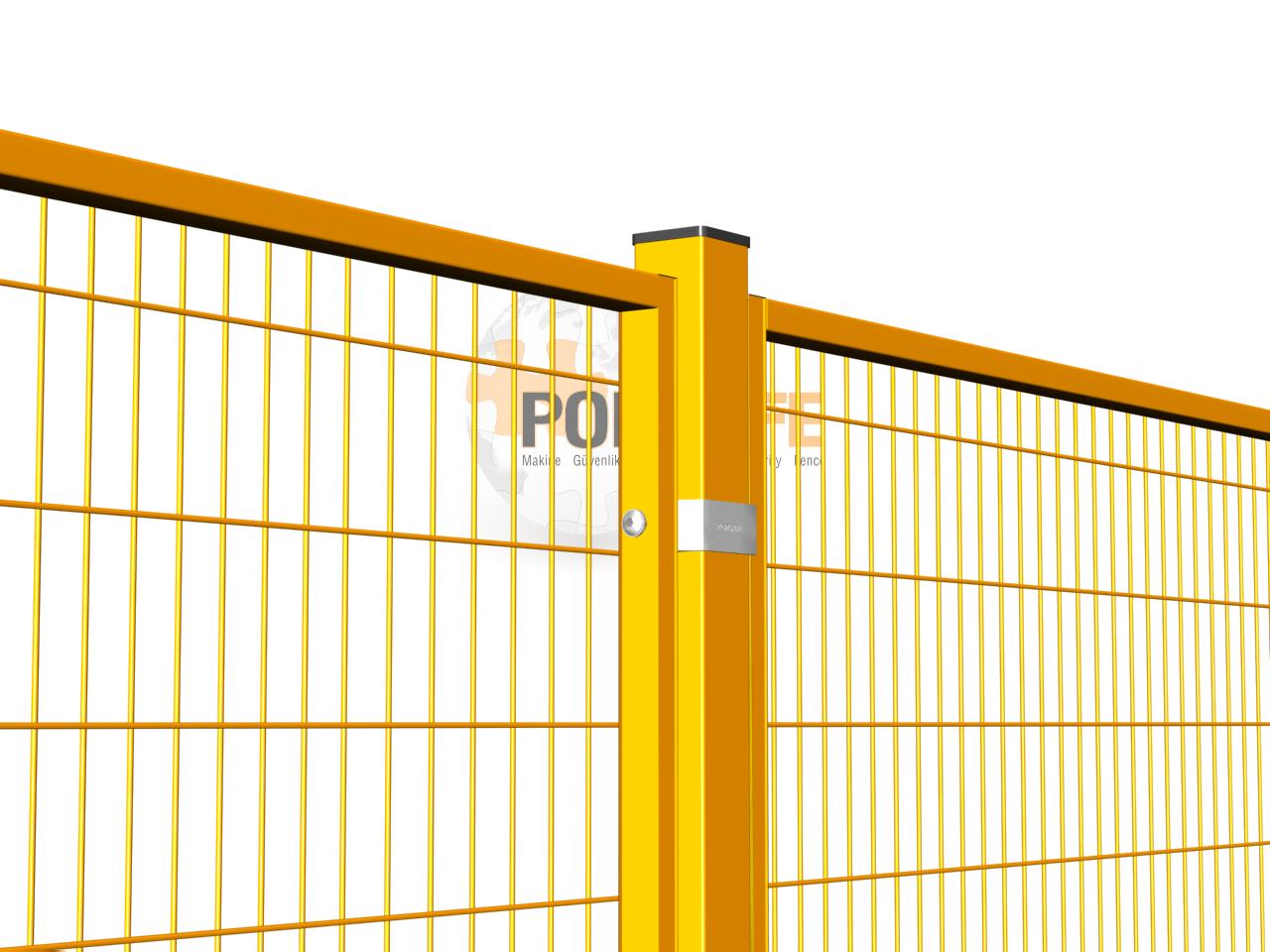

The posts are manufactured as a single unit together with the wheeled bases, and the safety panels are fitted using clamps or similar brackets.

System Height	:	1200 / 2200 mm
Panel Height	:	1020 / 2020 mm
Panel Width	:	1000 /1200 / 1500 mm
Wheelbase	:	500 mm

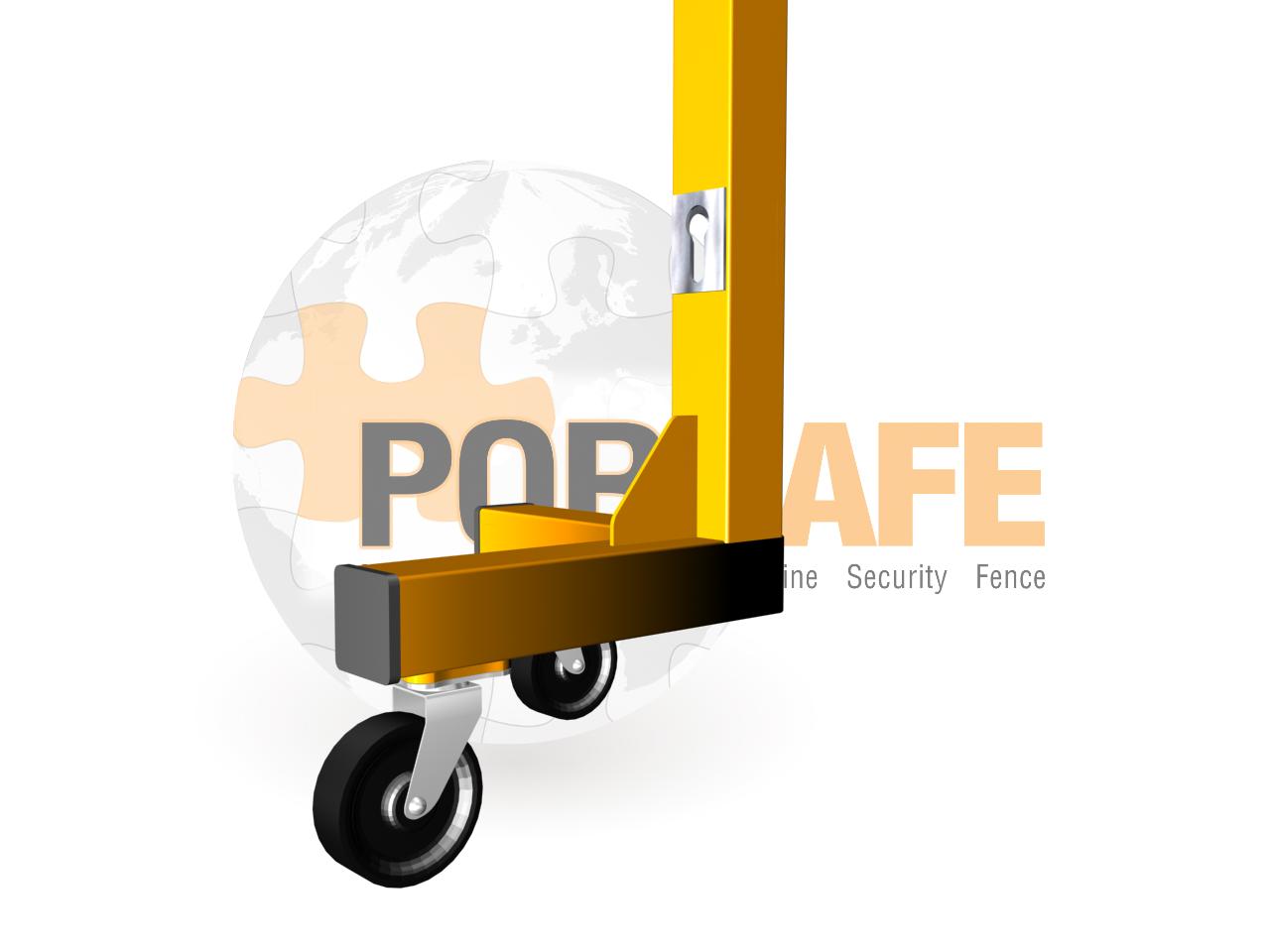

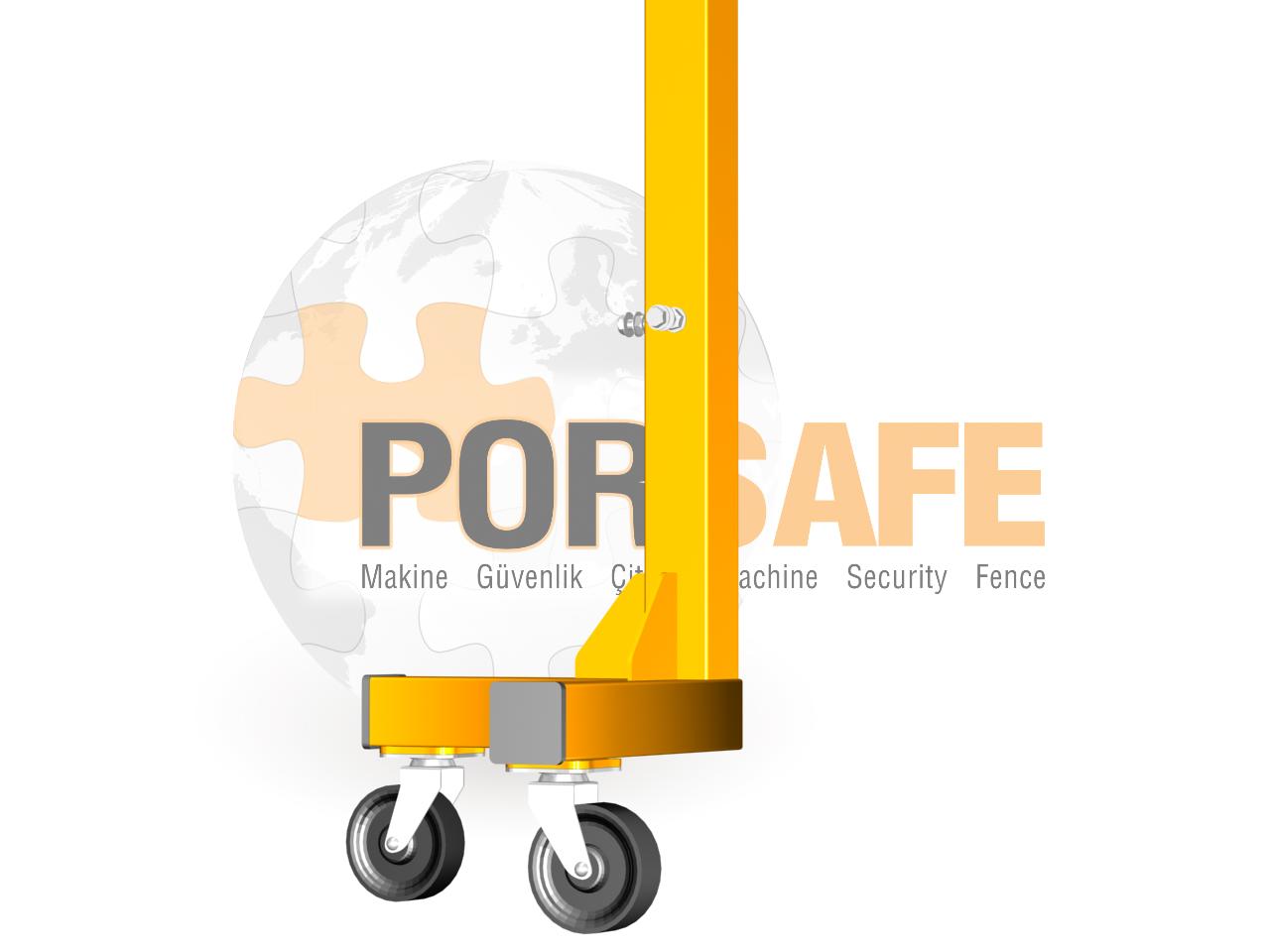

Wheel	:	ø 80 mm Bolted Rotating Type

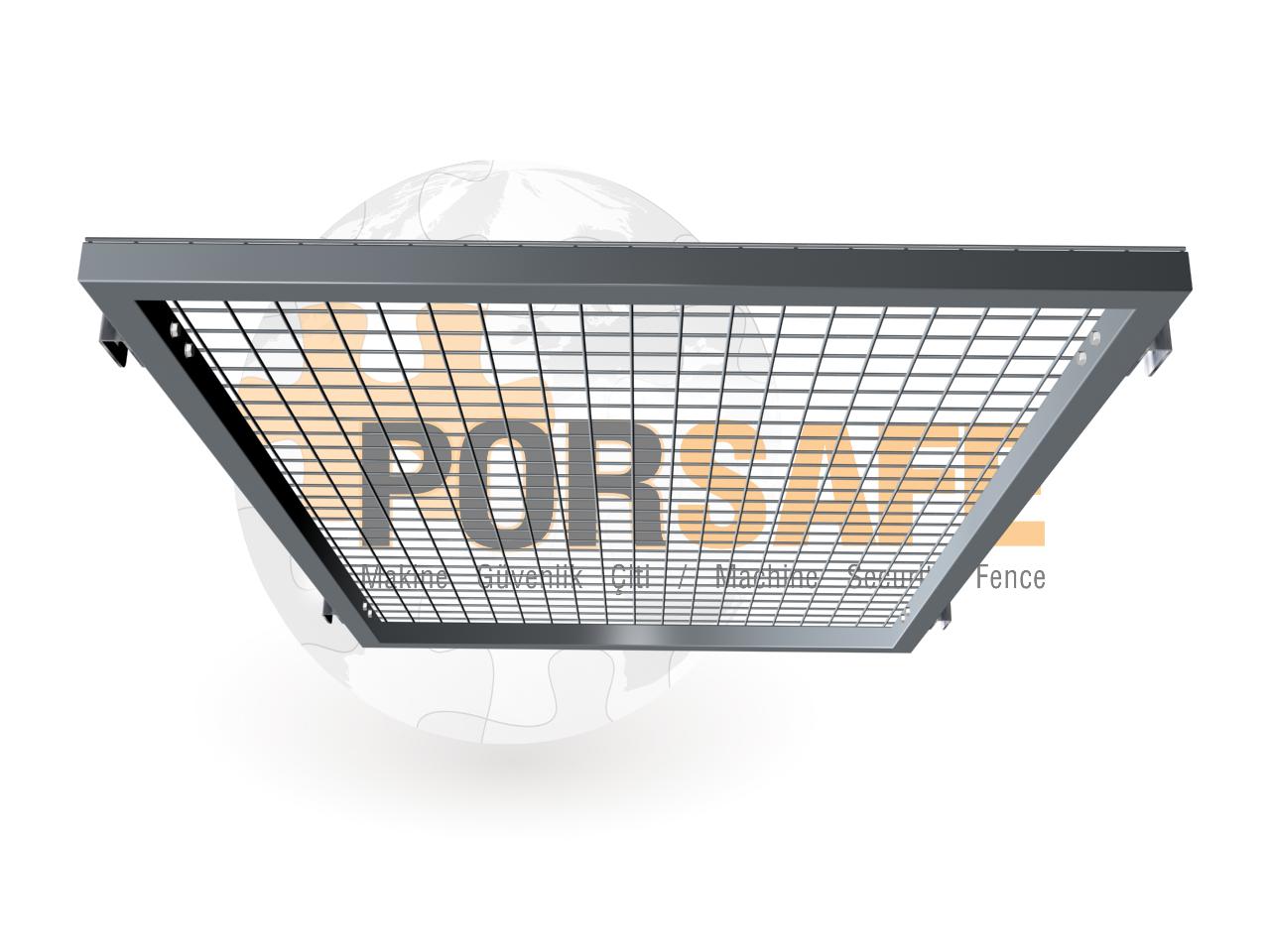

Panel Frame Meterial	:	30202 mm Box Profile

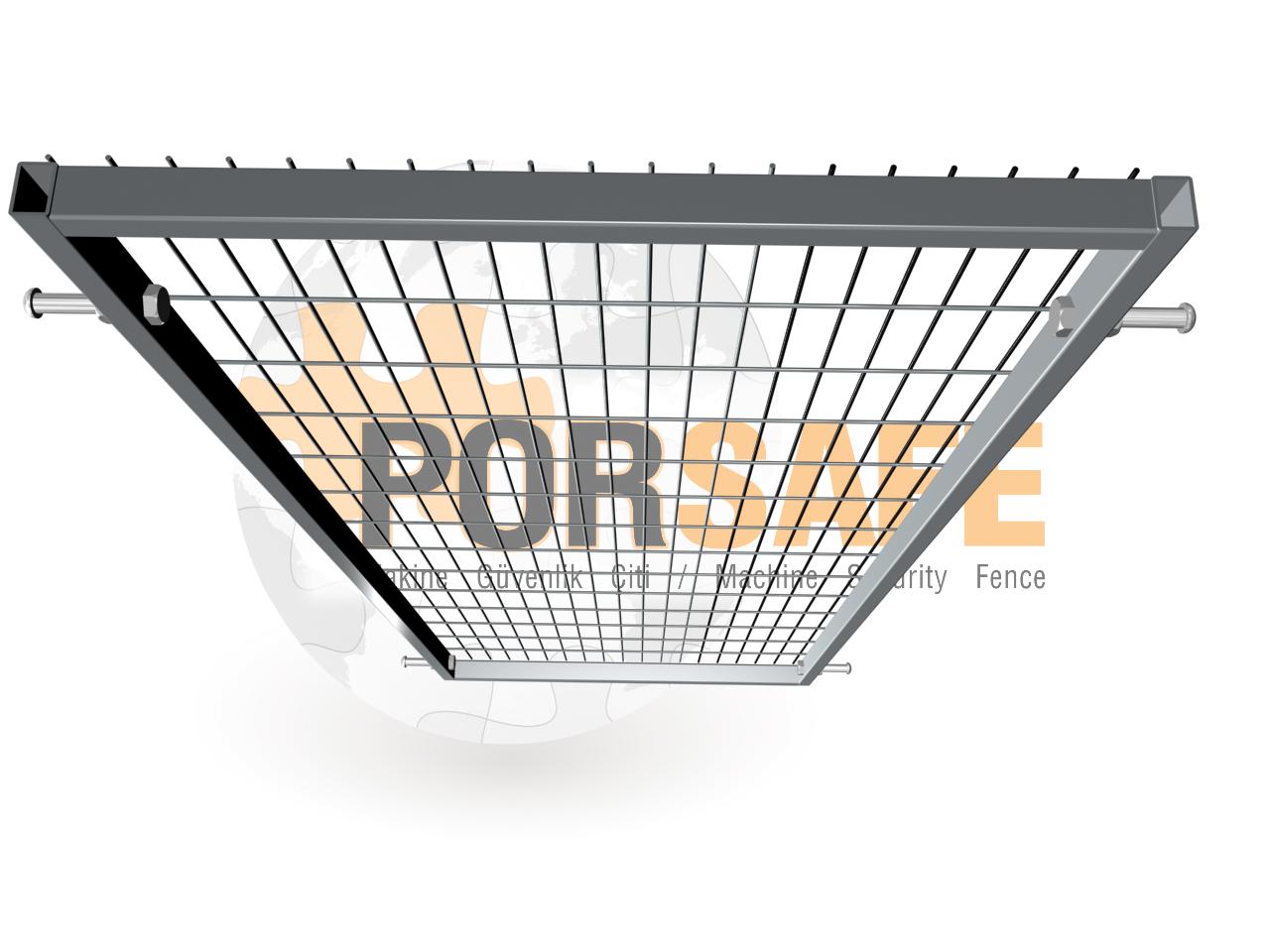

Panel Wire	:	ø 3 mm / 25*100 mm
Standard Panel Color	:	Ral 9005 (Black)

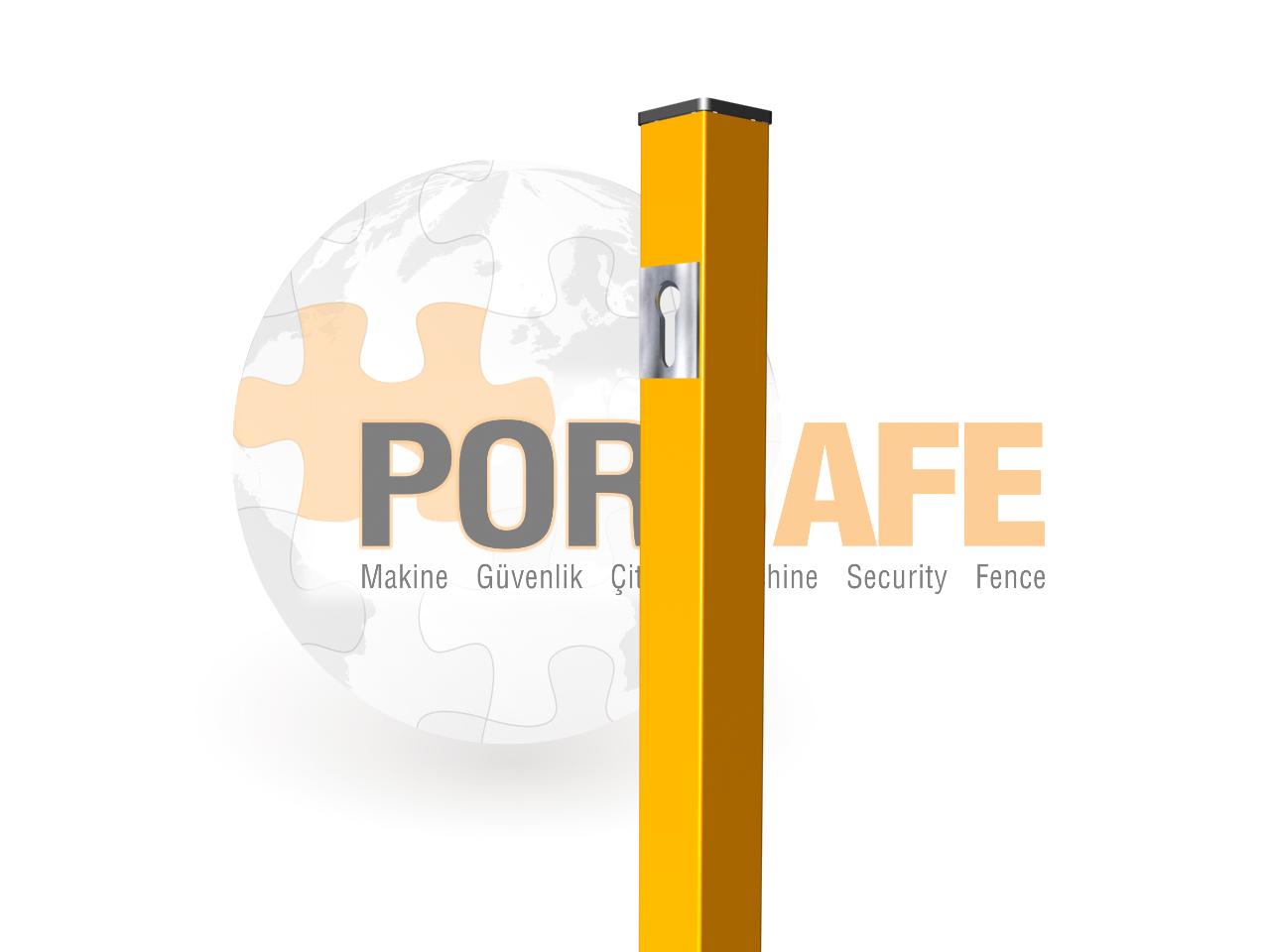

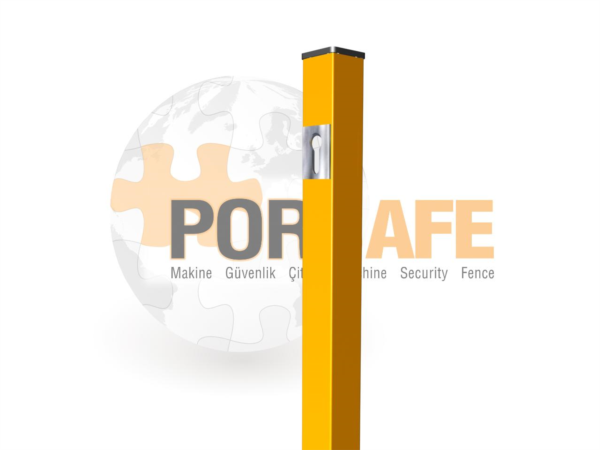

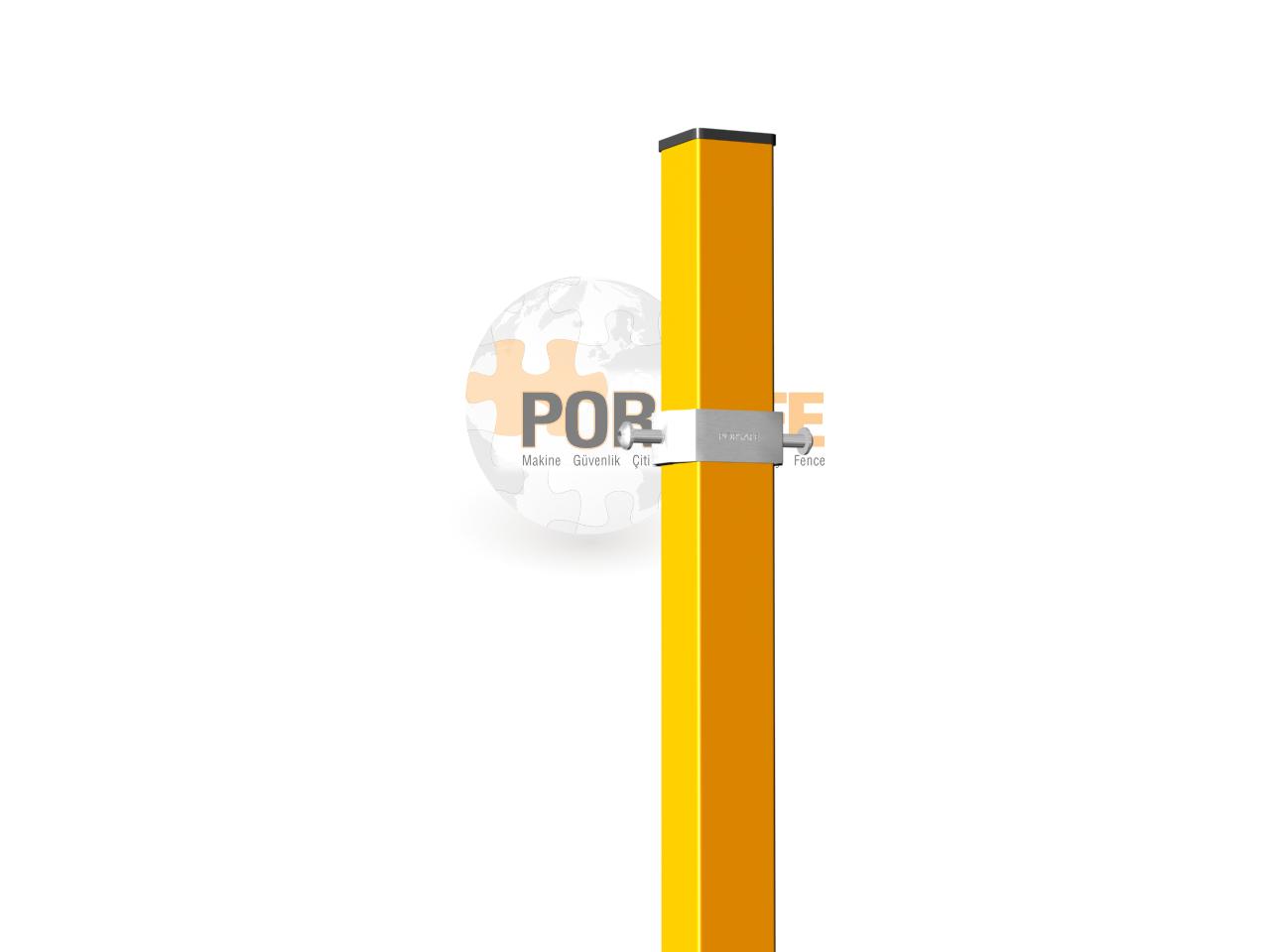

Post Material	:	Box Profile 50501,5 mm
Post Installation Types	:	Positioning on the floor
Standard Post Color	:	Ral 1028 (Yellow) / Ral 7040 ( Grey)

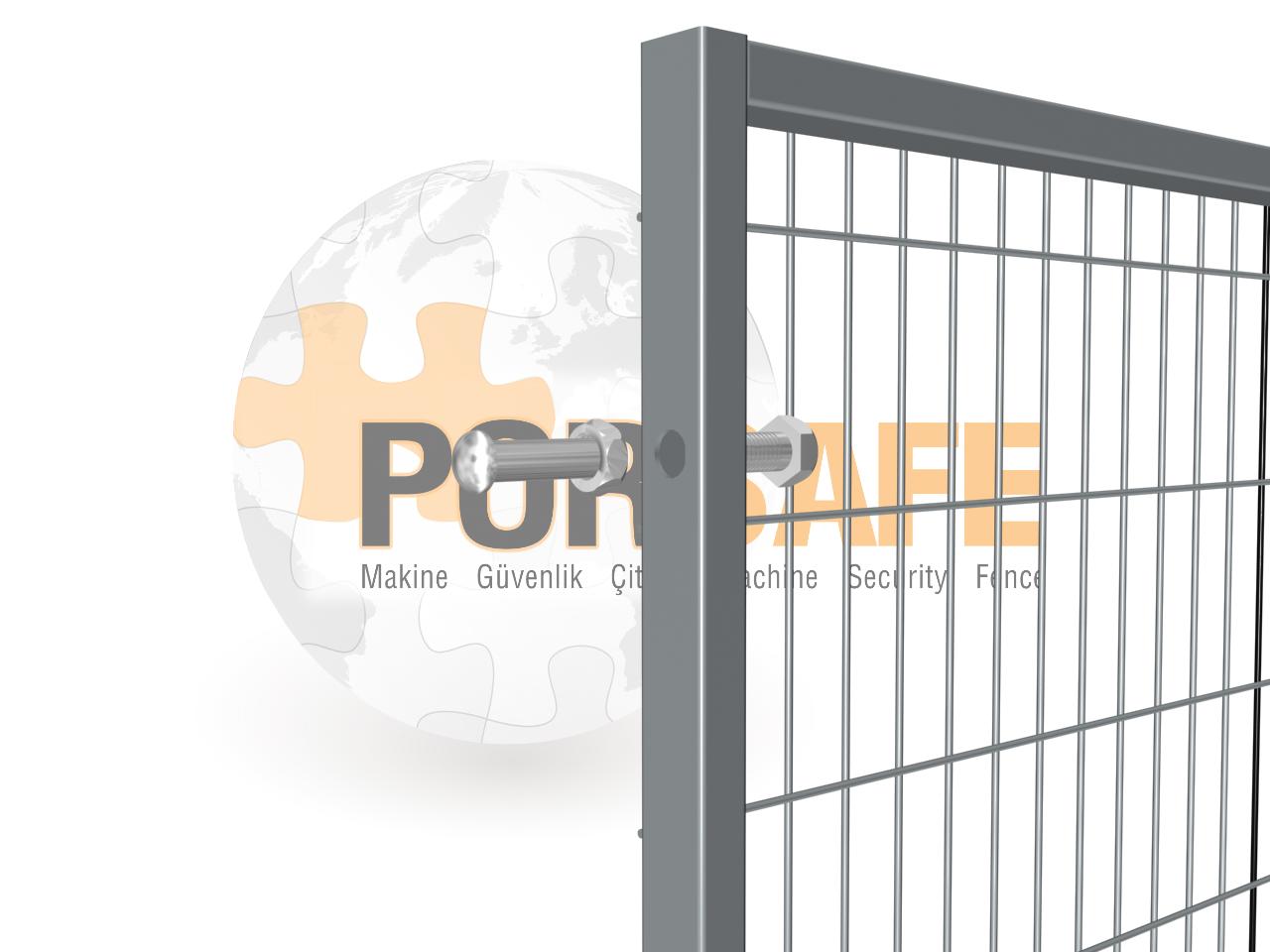

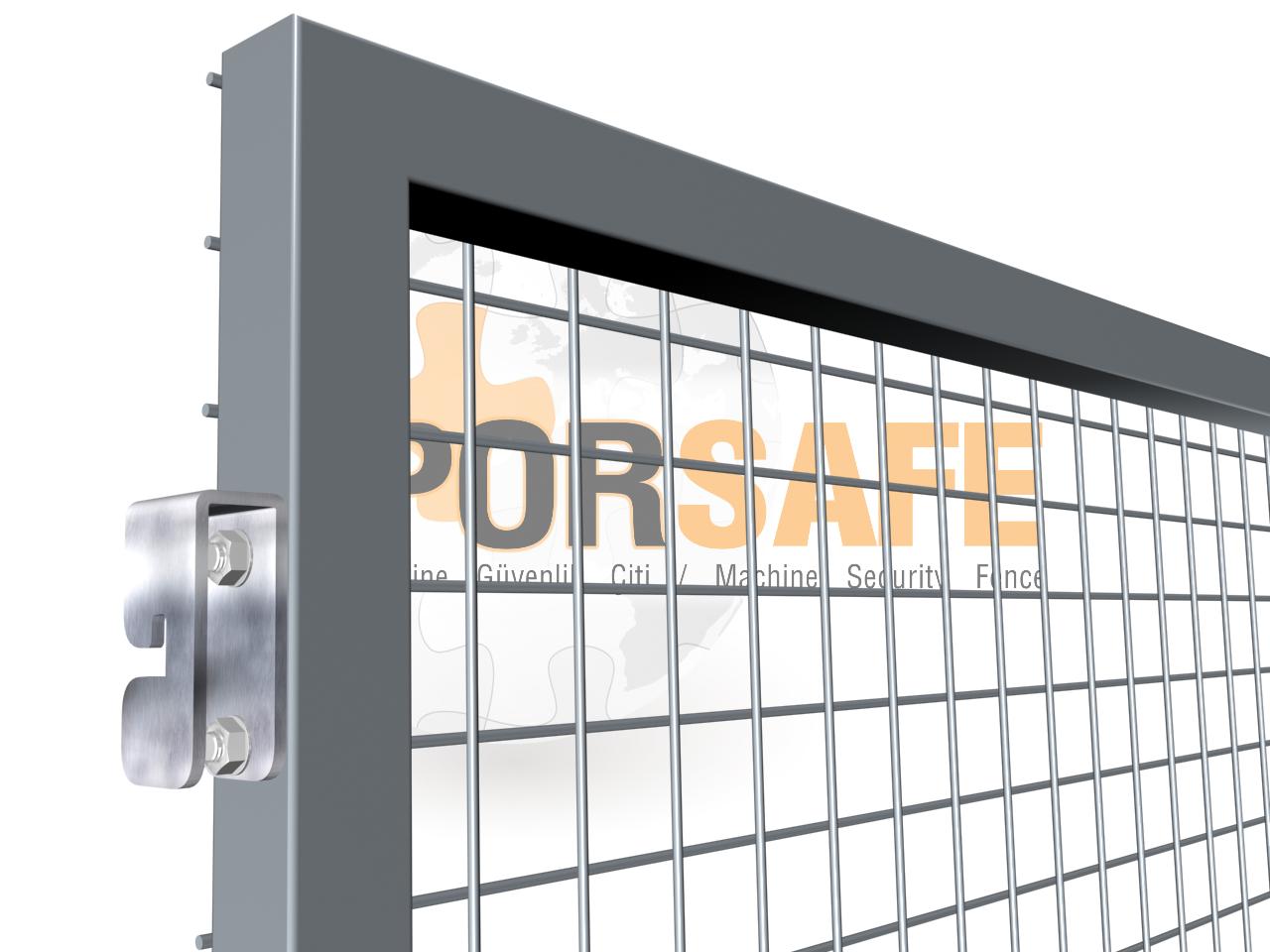

Panel Installation Types	:	Clamp+Screw
